Expanded Metal for Automobile Meets High Standard Automobile Manufacturing Standards

Expanded metal often serves as inlet grilles, pickup headache racks, speaker grills and other automobile parts and its rigid structure can protect the key part well. We can supply expanded metal for automobile to meet the needs of various automobile applications.

Automobile Inlet Grilles

Automobile, especially commercial cars and high performance racing cars, their inlet grilles are usually constructed of aluminum expanded metal. Its uniform, small openings can prevent debris and small particles from entering the engine compartment. At the same time, it allows the air to flow into the engine, providing good heat dissipation.

Features
  • Material: aluminum alloy
  • Hole pattern: diamond, hexagonal, square
  • Opening size: 5 × 10 mm, 7 × 12 mm, 8 × 16 mm, 10 × 20 mm, 7 × 25 mm, 8 × 25 mm
  • Finish: powder coated, anodized
Automobile expanded metal inlet grille details
Pickup Headache Rack

It is usually made of durable expanded metal sheet. Its unique opening structure not only provides an excellent rear view for drivers, but also delivers great impact resistance. In addition, it is available in a variety of colors to perfectly match with your pickup body.

Features
  • Material: aluminum
  • Hole pattern: diamond, hexagonal
  • Opening size: 24 × 48 mm
  • Finish: powder coated

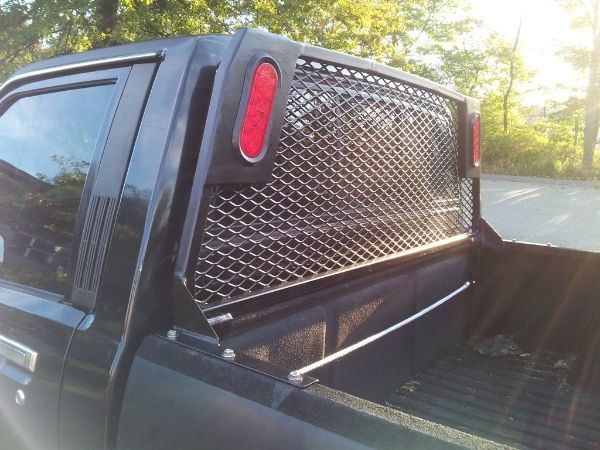

Expanded metal is installed at the back of the pickup rear window.
Speaker Grill

Automobile speaker grill is typically constructed of flattened small hole expanded metal to protect the internal drive elements in the speaker from external shocks while providing great acoustics and decoration effects.

Features
  • Material: carbon steel
  • Thickness: 0.5 mm
  • Hole pattern: diamond
  • Opening size (SWD × LWD):1.5 × 2.5 mm, 1.7 × 2.8 mm, 2.1 × 3 mm
  • Finish: powder coated

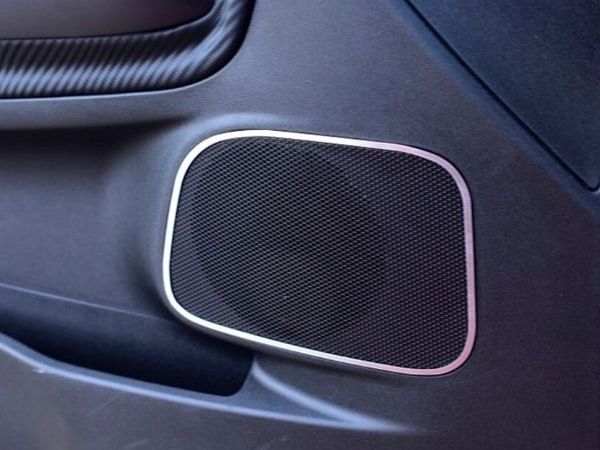

Expanded metal serves as the automobile speaker grill.
